Part No.

1/2" Square Drive 12 Point Socket

Add to Inquiry List

Specification

• Flank Traction profile

• Exceeds international ASME & DIN Standard

• For manual operation

• Chrome vanadium

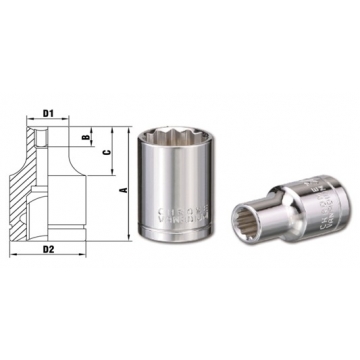

Part No.	Point	Finish	Metric mm	Imperial inch	D1 mm Drive End	D2 mm Socket End	A mm Overall Length	B mm Wrench Depth	C mm Length to Shoulder	Weight ( g )
J844090-22-230	12 Point	Matt	8.0		13.0	22.0	38.0	≧5.0	17.0	47.0
J844091-22-230	12 Point	Matt	9.0		14.0	22.0	38.0	≧5.0	17.0	47.0
J844092-22-230	12 Point	Matt	10.0		15.5	22.0	38.0	≧6.0	17.0	49.0
J844093-22-230	12 Point	Matt	11.0		16.7	22.0	38.0	≧7.0	17.0	50.0
J844094-22-230	12 Point	Matt	12.0		18.0	22.0	38.0	≧8.0	17.0	51.0
J844095-22-230	12 Point	Matt	13.0		19.2	22.0	38.0	≧8.0	17.0	52.0
J844096-22-230	12 Point	Matt	14.0		20.5	22.0	38.0	≧10.0	17.0	53.0
J844097-22-230	12 Point	Matt	15.0		22.0	22.0	38.0	≧10.0		54.0
J844098-22-230	12 Point	Matt	16.0		22.0	22.0	38.0	≧10.0		54.0
J844099-22-230	12 Point	Matt	17.0		24.0	24.0	38.0	≧10.0		68.0
J844100-22-230	12 Point	Matt	18.0		26.0	26.0	38.0	≧12.0		77.0
J844101-22-230	12 Point	Matt	19.0		26.0	26.0	38.0	≧12.0		77.0
J844102-22-230	12 Point	Matt	20.0		28.0	28.0	38.0	≧12.0		92.0
J844103-22-230	12 Point	Matt	21.0		28.0	28.0	38.0	≧12.0		92.0
J844104-22-230	12 Point	Matt	22.0		30.0	30.0	38.0	≧14.0		110.0
J844105-22-230	12 Point	Matt	23.0		32.0	32.0	38.0	≧14.0		125.0
J844106-22-230	12 Point	Matt	24.0		32.0	32.0	38.0	≧16.0		125.0
J844107-22-230	12 Point	Matt	25.0		34.0	34.0	42.0	≧16.0		165.0
J844108-22-230	12 Point	Matt	26.0		34.0	34.0	42.0	≧16.0		165.0
J844109-22-230	12 Point	Matt	27.0		36.0	36.0	42.0	≧18.0		182.0
J844110-22-230	12 Point	Matt	28.0		38.0	38.0	42.0	≧18.0		200.0
J844111-22-230	12 Point	Matt	29.0		38.0	38.0	42.0	≧18.0		218.0
J844112-22-230	12 Point	Matt	30.0		40.0	40.0	45.0	≧20.0		237.0
J844114-22-230	12 Point	Matt	32.0		42.0	42.0	45.0	≧22.0		259.0

J844120-22-230	12 Point	Matt		5/16"	13.0	22.0	38.0	≧5.0	17.0	47.0
J844122-22-230	12 Point	Matt		3/8"	15.3	22.0	38.0	≧6.0	17.0	49.0
J844123-22-230	12 Point	Matt		7/16"	16.7	22.0	38.0	≧7.0	17.0	50.0
J844124-22-230	12 Point	Matt		1/2"	19.2	22.0	38.0	≧8.0	17.0	52.0
J844125-22-230	12 Point	Matt		9/16"	20.5	22.0	38.0	≧10.0	17.0	53.0
J844126-22-230	12 Point	Matt		5/8"	22.0	22.0	38.0	≧10.0		53.0
J844129-22-230	12 Point	Matt		11/16"	24.0	24.0	38.0	≧10.0		67.0
J844130-22-230	12 Point	Matt		3/4"	26.0	26.0	38.0	≧12.0		77.0
J844132-22-230	12 Point	Matt		13/16"	28.0	28.0	38.0	≧12.0		92.0
J844133-22-230	12 Point	Matt		7/8"	30.0	30.0	38.0	≧14.0		109.0
J844134-22-230	12 Point	Matt		15/16"	32.0	32.0	38.0	≧16.0		127.0
J844136-22-230	12 Point	Matt		1"	34.0	34.0	42.0	≧16.0		156.0
J844137-22-230	12 Point	Matt		1-1/16"	36.0	36.0	42.0	≧18.0		178.0
J844138-22-230	12 Point	Matt		1-1/8"	38.0	38.0	42.0	≧18.0		200.0
J844139-22-230	12 Point	Matt		1-3/16"	40.0	40.0	45.0	≧20.0		233.0
J844140-22-230	12 Point	Matt		1-1/4"	42.0	42.0	45.0	≧22.0		260.0

J844090-22-220	12 Point	Chrome	8.0		13.0	22.0	38.0	≧5.0	17.0	47.0
J844091-22-220	12 Point	Chrome	9.0		14.0	22.0	38.0	≧5.0	17.0	47.0
J844092-22-220	12 Point	Chrome	10.0		15.5	22.0	38.0	≧6.0	17.0	49.0
J844093-22-220	12 Point	Chrome	11.0		16.7	22.0	38.0	≧7.0	17.0	50.0
J844094-22-220	12 Point	Chrome	12.0		18.0	22.0	38.0	≧8.0	17.0	51.0
J844095-22-220	12 Point	Chrome	13.0		19.2	22.0	38.0	≧8.0	17.0	52.0
J844096-22-220	12 Point	Chrome	14.0		20.5	22.0	38.0	≧10.0	17.0	53.0
J844097-22-220	12 Point	Chrome	15.0		22.0	22.0	38.0	≧10.0		54.0
J844098-22-220	12 Point	Chrome	16.0		22.0	22.0	38.0	≧10.0		54.0
J844099-22-220	12 Point	Chrome	17.0		24.0	24.0	38.0	≧10.0		68.0
J844100-22-220	12 Point	Chrome	18.0		26.0	26.0	38.0	≧12.0		77.0
J844101-22-220	12 Point	Chrome	19.0		26.0	26.0	38.0	≧12.0		77.0
J844102-22-220	12 Point	Chrome	20.0		28.0	28.0	38.0	≧12.0		92.0
J844103-22-220	12 Point	Chrome	21.0		28.0	28.0	38.0	≧12.0		92.0
J844104-22-220	12 Point	Chrome	22.0		30.0	30.0	38.0	≧14.0		110.0
J844105-22-220	12 Point	Chrome	23.0		32.0	32.0	38.0	≧14.0		125.0
J844106-22-220	12 Point	Chrome	24.0		32.0	32.0	38.0	≧16.0		125.0
J844107-22-220	12 Point	Chrome	25.0		34.0	34.0	42.0	≧16.0		165.0
J844108-22-220	12 Point	Chrome	26.0		34.0	34.0	42.0	≧16.0		165.0
J844109-22-220	12 Point	Chrome	27.0		36.0	36.0	42.0	≧18.0		182.0
J844110-22-220	12 Point	Chrome	28.0		38.0	38.0	42.0	≧18.0		200.0
J844111-22-220	12 Point	Chrome	29.0		38.0	38.0	42.0	≧18.0		218.0
J844112-22-220	12 Point	Chrome	30.0		40.0	40.0	45.0	≧20.0		237.0
J844114-22-220	12 Point	Chrome	32.0		42.0	42.0	45.0	≧22.0		259.0

J844120-22-220	12 Point	Chrome		5/16"	13.0	22.0	38.0	≧5.0	17.0	47.0
J844122-22-220	12 Point	Chrome		3/8"	15.3	22.0	38.0	≧6.0	17.0	49.0
J844123-22-230	12 Point	Chrome		7/16"	16.7	22.0	38.0	≧7.0	17.0	50.0
J844124-22-220	12 Point	Chrome		1/2"	19.2	22.0	38.0	≧8.0	17.0	52.0
J844125-22-220	12 Point	Chrome		9/16"	20.5	22.0	38.0	≧10.0	17.0	53.0
J844126-22-220	12 Point	Chrome		5/8"	22.0	22.0	38.0	≧10.0		53.0
J844129-22-220	12 Point	Chrome		11/16"	24.0	24.0	38.0	≧10.0		67.0
J844130-22-220	12 Point	Chrome		3/4"	26.0	26.0	38.0	≧12.0		77.0
J844132-22-220	12 Point	Chrome		13/16"	28.0	28.0	38.0	≧12.0		92.0
J844133-2-220	12 Point	Chrome		7/8"	30.0	30.0	38.0	≧14.0		109.0
J844134-22-220	12 Point	Chrome		15/16"	32.0	32.0	38.0	≧16.0		127.0
J844136-22-220	12 Point	Chrome		1"	34.0	34.0	42.0	≧16.0		156.0
J844137-22-220	12 Point	Chrome		1-1/16"	36.0	36.0	42.0	≧18.0		178.0
J844138-22-220	12 Point	Chrome		1-1/8"	38.0	38.0	42.0	≧18.0		200.0
J844139-22-220	12 Point	Chrome		1-3/16"	40.0	40.0	45.0	≧20.0		233.0
J844140-22-220	12 Point	Chrome		1-1/4"	42.0	42.0	45.0	≧22.0		260.0
