Part No.

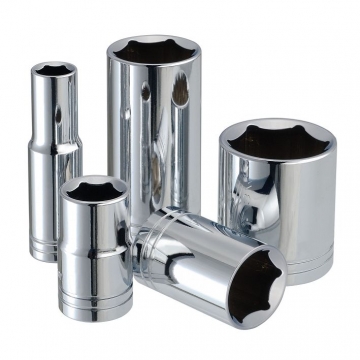

1/2" Square Drive 6 Point Deep Socket

Add to Inquiry List

Specification

• Flank Traction profile

• Exceeds international ASME & DIN Standard

• For manual operation

• Chrome vanadium

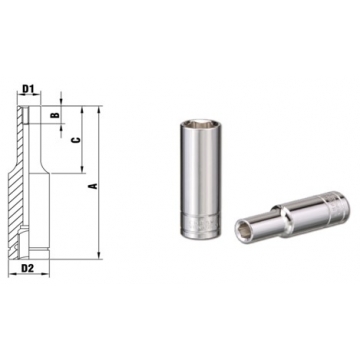

Part No.	Point	Finish	Metric mm	Imperial inch	D1 mm Drive End	D2 mm Socket End	A mm Overall Length	B mm Wrench Depth	C mm Length to Shoulder	Weight ( g )
J844390-26-230	6 Point	Matt	8.0		13.0	22.0	76.0	≧7.5	31.0	104.0
J844391-26-230	6 Point	Matt	9.0		14.0	22.0	76.0	≧7.5	31.0	105.0
J844392-26-230	6 Point	Matt	10.0		15.5	22.0	76.0	≧9.0	31.0	105.0
J844393-26-230	6 Point	Matt	11.0		16.7	22.0	76.0	≧10.5	31.0	106.0
J844394-26-230	6 Point	Matt	12.0		18.0	22.0	76.0	≧12.0	31.0	109.0
J844395-26-230	6 Point	Matt	13.0		19.2	22.0	76.0	≧12.0	31.0	110.0
J844396-26-230	6 Point	Matt	14.0		20.5	22.0	76.0	≧15.0	31.0	110.0
J844397-26-230	6 Point	Matt	15.0		22.0	22.0	76.0	≧15.0		110.0
J844398-26-230	6 Point	Matt	16.0		22.0	22.0	76.0	≧15.0		110.0
J844399-26-230	6 Point	Matt	17.0		24.0	24.0	76.0	≧15.0		131.0
J844400-26-230	6 Point	Matt	18.0		26.0	26.0	76.0	≧18.0		160.0
J844401-26-230	6 Point	Matt	19.0		26.0	26.0	76.0	≧18.0		160.0
J844402-26-230	6 Point	Matt	20.0		28.0	28.0	76.0	≧18.0		185.0
J844403-26-230	6 Point	Matt	21.0		28.0	28.0	76.0	≧18.0		185.0
J844404-26-230	6 Point	Matt	22.0		30.0	30.0	76.0	≧21.0		221.0
J844105-26-230	6 Point	Matt	23.0		32.0	32.0	76.0	≧21.0		252.0
J844406-26-230	6 Point	Matt	24.0		32.0	32.0	76.0	≧24.0		252.0
J844407-26-230	6 Point	Matt	25.0		34.0	34.0	76.0	≧24.0		299.0
J844408-26-230	6 Point	Matt	26.0		34.0	34.0	76.0	≧24.0		335.0
J844409-26-230	6 Point	Matt	27.0		36.0	36.0	76.0	≧27.0		335.0
J844410-26-230	6 Point	Matt	28.0		38.0	38.0	76.0	≧27.0		378.0
J844411-26-230	6 Point	Matt	29.0		38.0	38.0	76.0	≧27.0		378.0
J844412-26-230	6 Point	Matt	30.0		40.0	40.0	76.0	≧30.0		421.0
J844414-26-230	6 Point	Matt	32.0		42.0	42.0	76.0	≧33.0		470.0

J844120-26-230	6 Point	Matt		5/16"	13.0	22.0	76.0	≧7.5	31.0	104.0
J844122-26-230	6 Point	Matt		3/8"	15.3	22.0	76.0	≧9.0	31.0	105.0
J844123-26-230	6 Point	Matt		7/16"	16.7	22.0	76.0	≧10.5	31.0	106.0
J844124-26-230	6 Point	Matt		1/2"	19.2	22.0	76.0	≧12.0	31.0	110.0
J844125-26-230	6 Point	Matt		9/16"	20.5	22.0	76.0	≧15.0	31.0	110.0
J844126-26-230	6 Point	Matt		5/8"	22.0	22.0	76.0	≧15.0		110.0
J844129-26-230	6 Point	Matt		11/16"	24.0	24.0	76.0	≧15.0		131.0
J844130-26-230	6 Point	Matt		3/4"	26.0	26.0	76.0	≧18.0		160.0
J844132-26-230	6 Point	Matt		13/16"	28.0	28.0	76.0	≧18.0		189.0
J844133-26-230	6 Point	Matt		7/8"	30.0	30.0	76.0	≧21.0		219.0
J844134-26-230	6 Point	Matt		15/16"	32.0	32.0	76.0	≧24.0		247.0
J844136-26-230	6 Point	Matt		1"	34.0	34.0	76.0	≧24.0		296.0
J844137-26-230	6 Point	Matt		1-1/16"	36.0	36.0	76.0	≧27.0		332.0
J844138-26-230	6 Point	Matt		1-1/8"	38.0	38.0	76.0	≧27.0		376.0
J844139-26-230	6 Point	Matt		1-3/16"	40.0	40.0	76.0	≧30.0		421.0
J844140-26-230	6 Point	Matt		1-1/4"	42.0	42.0	76.0	≧33.0		470.0

J844390-26-220	6 Point	Chrome	8.0		13.0	22.0	76.0	≧7.5	31.0	104.0
J844391-26-220	6 Point	Chrome	9.0		14.0	22.0	76.0	≧7.5	31.0	105.0
J844392-26-220	6 Point	Chrome	10.0		15.5	22.0	76.0	≧9.0	31.0	105.0
J844393-26-220	6 Point	Chrome	11.0		16.7	22.0	76.0	≧10.5	31.0	106.0
J844394-26-220	6 Point	Chrome	12.0		18.0	22.0	76.0	≧12.0	31.0	109.0
J844395-26-220	6 Point	Chrome	13.0		19.2	22.0	76.0	≧12.0	31.0	110.0
J844396-26-220	6 Point	Chrome	14.0		20.5	22.0	76.0	≧15.0	31.0	110.0
J844397-26-220	6 Point	Chrome	15.0		22.0	22.0	76.0	≧15.0		110.0
J844398-26-220	6 Point	Chrome	16.0		22.0	22.0	76.0	≧15.0		110.0
J844399-26-220	6 Point	Chrome	17.0		24.0	24.0	76.0	≧15.0		131.0
J844400-26-220	6 Point	Chrome	18.0		26.0	26.0	76.0	≧18.0		160.0
J844401-26-220	6 Point	Chrome	19.0		26.0	26.0	76.0	≧18.0		160.0
J844402-26-220	6 Point	Chrome	20.0		28.0	28.0	76.0	≧18.0		185.0
J844403-26-220	6 Point	Chrome	21.0		28.0	28.0	76.0	≧18.0		185.0
J844404-26-220	6 Point	Chrome	22.0		30.0	30.0	76.0	≧21.0		221.0
J844105-26-220	6 Point	Chrome	23.0		32.0	32.0	76.0	≧21.0		252.0
J844406-26-220	6 Point	Chrome	24.0		32.0	32.0	76.0	≧24.0		252.0
J844407-26-220	6 Point	Chrome	25.0		34.0	34.0	76.0	≧24.0		299.0
J844408-26-220	6 Point	Chrome	26.0		34.0	34.0	76.0	≧24.0		335.0
J844409-26-220	6 Point	Chrome	27.0		36.0	36.0	76.0	≧27.0		335.0
J844410-26-220	6 Point	Chrome	28.0		38.0	38.0	76.0	≧27.0		378.0
J844411-26-220	6 Point	Chrome	29.0		38.0	38.0	76.0	≧27.0		378.0
J844412-26-220	6 Point	Chrome	30.0		40.0	40.0	76.0	≧30.0		421.0
J844414-26-220	6 Point	Chrome	32.0		42.0	42.0	76.0	≧33.0		470.0

J844120-26-220	6 Point	Matt		5/16"	13.0	22.0	76.0	≧7.5	31.0	104.0
J844122-26-220	6 Point	Matt		3/8"	15.3	22.0	76.0	≧9.0	31.0	105.0
J844123-26-220	6 Point	Matt		7/16"	16.7	22.0	76.0	≧10.5	31.0	106.0
J844124-26-220	6 Point	Matt		1/2"	19.2	22.0	76.0	≧12.0	31.0	110.0
J844125-26-220	6 Point	Matt		9/16"	20.5	22.0	76.0	≧15.0	31.0	110.0
J844126-26-220	6 Point	Matt		5/8"	22.0	22.0	76.0	≧15.0		110.0
J844129-26-220	6 Point	Matt		11/16"	24.0	24.0	76.0	≧15.0		131.0
J844130-26-220	6 Point	Matt		3/4"	26.0	26.0	76.0	≧18.0		160.0
J844132-26-220	6 Point	Matt		13/16"	28.0	28.0	76.0	≧18.0		189.0
J844133-26-220	6 Point	Matt		7/8"	30.0	30.0	76.0	≧21.0		219.0
J844134-26-220	6 Point	Matt		15/16"	32.0	32.0	76.0	≧24.0		247.0
J844136-26-220	6 Point	Matt		1"	34.0	34.0	76.0	≧24.0		296.0
J844137-26-220	6 Point	Matt		1-1/16"	36.0	36.0	76.0	≧27.0		332.0
J844138-26-220	6 Point	Matt		1-1/8"	38.0	38.0	76.0	≧27.0		376.0
J844139-26-220	6 Point	Matt		1-3/16"	40.0	40.0	76.0	≧30.0		421.0
J844140-26-220	6 Point	Matt		1-1/4"	42.0	42.0	76.0	≧33.0		470.0
