Part No.

Combination Spanner - Sunk Panel

Add to Inquiry List

Specification

• Exceeds international DIN Standard

• Flank Traction profile ( 12 point )

• Jaw 15° offset

• Ring head 15° offset

• Ground heads

• Chrome vanadium

• Phosphate, Matt chrome, Chrome plated and mirror polish, Satin chrome finish are available

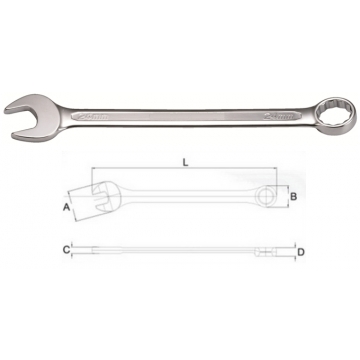

Part No.	Finish	Metric mm	Imperial inch	L	A	B	C	D
J851000-31-230	Matt	6		102	15.7	10.4	3.6	4.5
J851001-31-230	Matt	7		112	17.2	11.6	4.0	4.9
J851002-31-230	Matt	8		122	19.6	12.8	4.5	5.3
J851003-31-230	Matt	9		132	21.5	14.6	4.7	5.7
J851004-31-230	Matt	10		140	23.8	16.2	4.9	6.6
J851005-31-230	Matt	11		150	25.6	17.5	5.0	6.9
J851006-31-230	Matt	12		160	27.4	18.4	5.4	7.2
J851007-31-230	Matt	13		170	29.6	19.8	5.9	7.7
J851008-31-230	Matt	14		180	31.7	21.6	6.2	8.6
J851009-31-230	Matt	15		190	33.2	23.1	6.5	8.7
J851010-31-230	Matt	16		200	34.7	24.5	6.7	8.9
J851011-31-230	Matt	17		210	36.8	25.8	6.7	8.9
J851012-31-230	Matt	18		220	36.8	26.9	7.1	9.9
J851013-31-230	Matt	19		230	40.8	28.6	7.4	10.3
J851014-31-230	Matt	20		240	43	29.7	7.6	10.5
J851015-31-230	Matt	21		250	45.3	31.8	7.8	11.0
J851016-31-230	Matt	22		260	46.6	32.7	8.0	11.7
J851017-31-230	Matt	23		270	47.7	33.5	8.4	11.9
J851018-31-230	Matt	24		280	50.4	35.9	8.5	12.2
J851019-31-230	Matt	25		290	52.5	36.9	8.8	12.3
J851020-31-230	Matt	26		300	53	38.2	9.0	12.4
J851021-31-230	Matt	27		310	53.3	38.5	9.2	12.5
J851022-31-230	Matt	28		320	56.6	40.5	9.3	12.6
J851023-31-230	Matt	29		330	59	41.4	9.5	12.8
J851024-31-230	Matt	30		340	62.3	43.9	9.9	13.2
J851025-31-230	Matt	32		360	65.7	45.7	10.3	14.0
J851026-31-230	Matt	33		380	69.2	50.2	11.6	15.7
J851027-31-230	Matt	34		380	69.2	50.2	11.6	15.7
J851029-31-230	Matt	36		410	74.6	54.3	13.2	18.5
J851030-31-230	Matt	38		410	77	57.0	14.4	19.0
J851031-31-230	Matt	41		460	83.6	61.3	14.5	21.5
J851032-31-230	Matt	42		460	83.6	61.3	14.5	21.5
J851033-31-230	Matt	43		460	83.6	61.3	14.5	21.5
J851034-31-230	Matt	44		500	89.3	63.9	15.0	21.7
J851035-31-230	Matt	45		500	89.3	63.9	15.0	21.7
J851036-31-230	Matt	46		540	89.3	63.9	15.0	21.7
J851037-31-230	Matt	48		540	97	73.5	16.9	23.1
J851038-31-230	Matt	50		540	97	73.5	16.9	23.1
J851050-31-230	Matt		1/4	102	15.7	10.4	3.6	4.5
J851051-31-230	Matt		5/16	122	19.6	12.8	4.5	5.3
J851052-31-230	Matt		3/8	132	21.5	14.6	4.7	5.7
J851053-31-230	Matt		7/16	150	25.6	17.5	5.0	6.9
J851054-31-230	Matt		1/2	170	29.6	19.8	5.9	7.7
J851055-31-230	Matt		9/16	180	31.7	21.6	6.2	8.6
J851056-31-230	Matt		5/8	200	34.7	24.5	6.7	8.9
J851057-31-230	Matt		11/16	210	36.8	25.8	6.7	8.9
J851058-31-230	Matt		3/4	230	40.8	28.6	7.4	10.3
J851059-31-230	Matt		13/16	250	45.3	31.8	7.8	11.0
J851060-31-230	Matt		7/8	260	46.6	32.7	8.0	11.7
J851061-31-230	Matt		15/16	280	50.4	35.9	8.5	12.2
J851062-31-230	Matt		1"	300	53	38.2	9.0	12.4
J851063-31-230	Matt		1-1/16	310	53.3	38.5	9.2	12.5
J851064-31-230	Matt		1-1/8	340	62.3	43.9	9.9	13.2
J851065-31-230	Matt		1-1/4	360	65.7	45.7	10.3	14.0
