70° Offset Combination Spanner - Sunk Panel

BACK

Part No.

70° Offset Combination Spanner - Sunk Panel

Add to Inquiry List

Specification

• Exceeds international DIN Standard

• Flank Traction profile ( 12 point )

• Jaw 15° offset

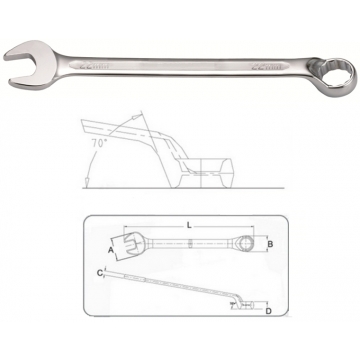

• Ring head 70° offset

• Ground heads

• Chrome vanadium

• Phosphate, Matt chrome, Chrome plated and mirror polish, Satin chrome finish are available

Part No.	Finish	Metric mm	Imperial inch	L	A	B	C	D
J851000-38-230	Matt	6		102.0	15.7	10.4	3.6	4.5
J851001-38-230	Matt	7		112.0	17.2	11.6	4.0	4.9
J851002-38-230	Matt	8		122.0	19.6	12.8	4.5	5.3
J851003-38-230	Matt	9		132.0	21.5	14.6	4.7	5.7
J851004-38-230	Matt	10		140.0	23.8	16.2	4.9	6.6
J851005-38-230	Matt	11		150.0	25.6	17.5	5.0	6.9
J851006-38-230	Matt	12		160.0	27.4	18.4	5.4	7.2
J851007-38-230	Matt	13		170.0	29.6	19.8	5.9	7.7
J851008-38-230	Matt	14		180.0	31.7	21.6	6.2	8.6
J851009-38-230	Matt	15		190.0	33.2	23.1	6.5	8.7
J851010-38-230	Matt	16		200.0	34.7	24.5	6.7	8.9
J851011-38-230	Matt	17		210.0	36.8	25.8	6.7	8.9
J851012-38-230	Matt	18		220.0	36.8	26.9	7.1	9.9
J851013-38-230	Matt	19		230.0	40.8	28.6	7.4	10.3
J851015-38-230	Matt	21		250.0	45.3	31.8	7.8	11.0
J851016-38-230	Matt	22		260.0	46.6	32.7	8.0	11.7
J851017-38-230	Matt	23		270.0	47.7	33.5	8.4	11.9
J851018-38-230	Matt	24		280.0	50.4	35.9	8.5	12.2
J851021-38-230	Matt	27		310.0	53.3	38.5	9.2	12.5
J851024-38-230	Matt	30		340.0	62.3	43.9	9.9	13.2
J851025-38-230	Matt	32		360.0	65.7	45.7	10.3	14.0
J851050-38-230	Matt		1/4	102.0	15.7	10.4	3.6	4.5
J851051-38-230	Matt		5/16	122.0	19.6	12.8	4.5	5.3
J851052-38-230	Matt		3/8	132.0	21.5	14.6	4.7	5.7
J851053-38-230	Matt		7/16	150.0	25.6	17.5	5.0	6.9
J851054-38-230	Matt		1/2	170.0	29.6	19.8	5.9	7.7
J851055-38-230	Matt		9/16	180.0	31.7	21.6	6.2	8.6
J851056-38-230	Matt		5/8	200.0	34.7	24.5	6.7	8.9
J851057-38-230	Matt		11/16	210.0	36.8	25.8	6.7	8.9
J851058-38-230	Matt		3/4	230.0	40.8	28.6	7.4	10.3
J851059-38-230	Matt		13/16	250.0	45.3	31.8	7.8	11.0
J851060-38-230	Matt		7/8	260.0	46.6	32.7	8.0	11.7
J851061-38-230	Matt		15/16	280.0	50.4	35.9	8.5	12.2
J851062-38-230	Matt		1	300.0	53.0	38.2	9.0	12.4
J851063-38-230	Matt		1-1/16	310.0	53.3	38.5	9.2	12.5
J851064-38-230	Matt		1-1/8	340.0	62.3	43.9	9.9	13.2
J851065-38-230	Matt		1-1/4	360.0	65.7	45.7	10.3	14.0
