Part No.

Combination Spanner - Flat Panel

Add to Inquiry List

Specification

• Exceeds international DIN Standard

• Flank Traction profile ( 12 point )

• Jaw 15° offset

• Ring head 15° offset

• Ground heads

• Chrome vanadium

• Phosphate, Matt chrome, Chrome plated and mirror polish, Satin chrome finish are available

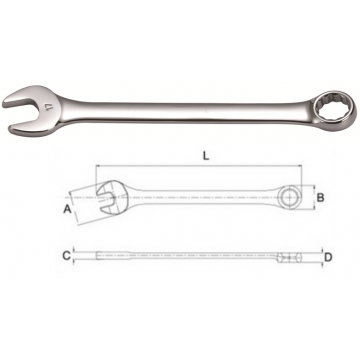

Part No.	Finish	Metric mm	Imperial inch	L	A	B	C	D
J851000-11-220	Chrome	6		128	13.7	10.5	4.3	4.6
J851001-11-220	Chrome	7		138	15.2	11.6	4.6	5.1
J851002-11-220	Chrome	8		148	18.9	12.6	4.7	5.7
J851003-11-220	Chrome	9		154	20.6	15.6	5.8	8.1
J851004-11-220	Chrome	10		162	21.5	14.4	6.0	8.3
J851005-11-220	Chrome	11		167	23.0	17.8	6.8	8.5
J851006-11-220	Chrome	12		174	25.6	18.3	6.9	7.9
J851007-11-220	Chrome	13		178	26.3	20.3	7.1	8.8
J851008-11-220	Chrome	14		190	28.9	22.1	7.7	9.6
J851009-11-220	Chrome	15		205	32.6	24.5	8.5	10.7
J851010-11-220	Chrome	16		205	32.6	24.5	8.5	10.7
J851011-11-220	Chrome	17		225	36.8	28.3	9.2	11.2
J851012-11-220	Chrome	18		248	38.6	28.3	9.1	11.2
J851013-11-220	Chrome	19		248	38.6	28.3	9.1	11.2
J851014-11-220	Chrome	20		270	42.5	30.5	9.8	12.4
J851015-11-220	Chrome	21		270	42.5	30.5	9.8	12.4
J851016-11-220	Chrome	22		292	46.5	33.3	10.4	12.9
J851017-11-220	Chrome	23		314	48.5	35.4	10.8	12.9
J851018-11-220	Chrome	24		314	48.5	35.4	10.8	12.9
J851019-11-220	Chrome	25		336	50.4	36.5	11.4	14.4
J851020-11-220	Chrome	26		336	50.4	36.5	11.4	14.4
J851021-11-220	Chrome	27		359	53.5	38.4	12.3	15.4
J851022-11-220	Chrome	28		390	57.2	43.1	12.9	15.8
J851023-11-220	Chrome	29		390	57.2	43.1	12.9	15.8
J851024-11-220	Chrome	30		390	57.2	43.1	12.9	15.8
J851025-11-220	Chrome	32		425	62.0	45.1	13.0	16.4
J851050-11-220	Chrome		1/4	128	13.7	10.5	4.3	4.6
J851051-11-220	Chrome		5/16	148	18.9	12.6	5.8	8.1
J851052-11-220	Chrome		3/8	154	20.6	15.6	5.8	8.1
J851053-11-220	Chrome		7/16	167	23.0	17.8	6.8	8.5
J851054-11-220	Chrome		1/2	178	26.3	20.3	7.1	8.8
J851055-11-220	Chrome		9/16	190	28.9	22.1	7.7	9.6
J851056-11-220	Chrome		5/8	205	32.6	24.5	8.5	10.7
J851057-11-220	Chrome		11/16	225	36.3	26.7	8.8	11.2
J851058-11-220	Chrome		3/4	248	38.6	28.3	9.2	11.2
J851059-11-220	Chrome		13/16	270	42.5	30.5	9.8	12.4
J851060-11-220	Chrome		7/8	292	46.5	33.3	10.4	12.9
J851061-11-220	Chrome		15/16	314	48.5	35.4	10.8	13.9
J851062-11-220	Chrome		1"	336	50.4	36.5	11.4	14.4
J851063--11-220	Chrome		1-1/16	359	53.5	38.4	12.3	15.4
J851064-11-220	Chrome		1-1/8	390	57.2	43.1	12.9	15.8
J851065-11-220	Chrome		1-1/4	425	62.0	45.1	13.0	16.4
