Part No.

Stubby Combination Spanner - Flat Panel

Specification

• Exceeds international DIN Standard
• Flank Traction profile ( 12 point )
• Jaw 15° offset
• Ring head 15° offset
• Ground heads
• Chrome vanadium
• Phosphate, Matt chrome, Chrome plated and mirror polish, Satin chrome finish are available
Part No. Finish Metric
mm
Imperial
inch

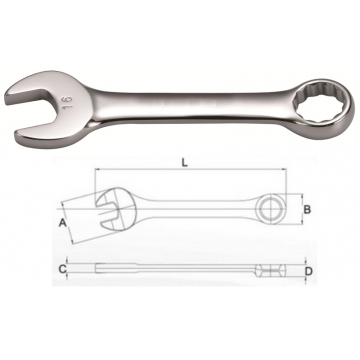

L A B C D
J851000-1S-220 Chrome 6   77 13.1 10.0 4.6 5.8
J851001-1S-220 Chrome 7   80 15.8 10.3 5.0 5.8
J851002-1S-220 Chrome 8   85 17.8 13.5 5.2 5.9
J851003-1S-220 Chrome 9   90 18.9 14.2 5.2 5.9
J851004-1S-220 Chrome 10   95 22.2 16.1 5.8 7.5
J851005-1S-220 Chrome 11   100 23.9 17.9 6.1 7.8
J851006-1S-220 Chrome 12   104 25.5 19.1 6.6 7.8
J851007-1S-220 Chrome 13   109 27.1 19.9 7.0 9.1
J851008-1S-220 Chrome 14   114 29.2 21.8 7.6 9.4
J851009-1S-220 Chrome 15   120 30.1 22.5 7.8 9.6
J851010-1S-220 Chrome 16   124 32.8 24.1 7.9 9.8
J851011-1S-220 Chrome 17   130 35.8 26.1 8.7 10.8
J851012-1S-220 Chrome 18   134 36.7 27.0 9.1 11.0
J851013-1S-220 Chrome 19   140 38.1 28.6 9.9 11.9
J851016-1S-220 Chrome 22   165 39.7 29.8 10.3 12.5
J851050-1S-220 Chrome   1/4 77 13.1 10.0 4.6 5.8
J851051-1S-220 Chrome   5/16 85 17.8 13.5 5.2 5.9
J851052-1S-220 Chrome   3/8 95 22.2 16.1 5.8 7.5
J851053-1S-220 Chrome   7/16 100 23.9 17.9 6.1 7.8
J851054-1S-220 Chrome   1/2 109 27.1 19.9 7.0 9.1
J851055-1S-220 Chrome   9/16 114 29.2 21.8 7.6 9.4
J851056-1S-220 Chrome   5/8 124 32.8 24.1 7.9 9.8
J851057-1S-220 Chrome   11/16 130 35.8 26.1 8.7 10.8
J851058-1S-220 Chrome   3/4 140 38.1 28.6 9.9 11.9
