Part No.

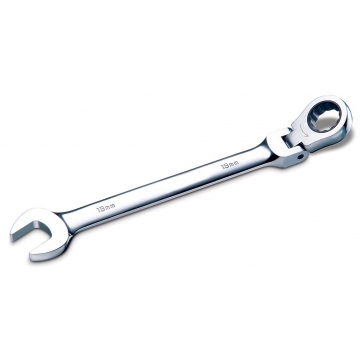

Flexible Locking Combination Ratcheting Spanner

Specification

• Exceeds international DIN Standard
• Flank Traction profile ( 12 point )
• Exact gearing with 72 teeth
• Jaw 15° offset
• 180° revolving head
• Chrome vanadium
Part No. Finish Metric
mm
Imperial
inch
L
mm
Wt.
(g)
J851600-12-130 Matt 6.0   136.0 36.0
J851601-12-130 Matt 7.0   136.0 36.0
J851602-12-130 Matt 8.0   136.0 36.0
J851603-12-130 Matt 9.0   143.0 41.0
J851604-12-130 Matt 10.0   160.0 63.0
J851605-12-130 Matt 11.0   168.0 80.0
J851606-12-130 Matt 12.0   174.0 89.0
J851607-12-130 Matt 13.0   180.0 108.0
J851608-12-130 Matt 14.0   193.0 130.0
J851609-12-130 Matt 15.0   200.0 155.0
J851610-12-130 Matt 16.0   216.0 183.0
J851611-12-130 Matt 17.0   233.0 214.0
J851612-12-130 Matt 18.0   239.0 231.0
J851613-12-130 Matt 19.0   250.0 270.0
J851614-12-130 Matt 20.0   285.0 400.0
J851615-12-130 Matt 21.0   285.0 395.0
J851616-12-130 Matt 22.0   285.0 395.0
J851617-12-130 Matt 23.0   285.0 390.0
J851618-12-130 Matt 24.0   325.0 550.0
J851619-12-130 Matt 25.0   325.0 550.0
J851620-12-130 Matt 26.0   325.0 -
J851621-12-130 Matt 27.0   359.0 -
J851622-12-130 Matt 28.0   359.0 -
J851623-12-130 Matt 30.0   425.0 -
J851624-12-130 Matt 32.0   425.0 -
J851630-12-130 Matt   1/4 136.0 36.0
J851631-12-130 Matt   5/16 136.0 36.0
J851632-12-130 Matt   3/8 160.0 63.0
J851633-132-130 Matt   7/16 168.0 80.0
J851634-12-130 Matt   1/2 180.0 108.0
J851635-12-130 Matt   9/16 193.0 130.0
J851636-12-130 Matt   5/8 216.0 183.0
J851637-12-130 Matt   11/16 233.0 214.0
J851638-12-130 Matt   3/4 250.0 270.0
J851639-12-130 Matt   13/16 285.0 400.0
J851640-12-130 Matt   7/8 285.0 395.0
J851641-12-130 Matt   15/16 325.0 550.0
J851642-12-130 Matt   1 325.0 545.0
J851643-12-130 Matt   1-1/16 359.0 -
J851644-12-130 Matt   1-1/8 425.0 -
J851645-12-130 Matt   1-1/4 425.0 -

J851600-12-120 Chrome 6.0   136.0 36.0
J851601-12-120 Chrome 7.0   136.0 36.0
J851602-12-120 Chrome 8.0   136.0 36.0
J851603-12-120 Chrome 9.0   143.0 41.0
J851604-12-120 Chrome 10.0   160.0 63.0
J851605-12-120 Chrome 11.0   168.0 80.0
J851606-12-120 Chrome 12.0   174.0 89.0
J851607-12-120 Chrome 13.0   180.0 108.0
J851608-12-120 Chrome 14.0   193.0 130.0
J851609-12-120 Chrome 15.0   200.0 155.0
J851610-12-120 Chrome 16.0   216.0 183.0
J851611-12-120 Chrome 17.0   233.0 214.0
J851612-12-120 Chrome 18.0   239.0 231.0
J851613-12-120 Chrome 19.0   250.0 270.0
J851614-12-120 Chrome 20.0   285.0 400.0
J851615-12-120 Chrome 21.0   285.0 395.0
J851616-12-120 Chrome 22.0   285.0 395.0
J851617-12-120 Chrome 23.0   285.0 390.0
J851618-12-120 Chrome 24.0   325.0 550.0
J851619-12-120 Chrome 25.0   325.0 550.0
J851620-12-120 Chrome 26.0   325.0 -
J851621-12-120 Chrome 27.0   359.0 -
J851622-12-120 Chrome 28.0   359.0 -
J851623-12-120 Chrome 30.0   425.0 -
J851624-12-120 Chrome 32.0   425.0 -
J851630-12-120 Chrome   1/4 136.0 36.0
J851631-12-120 Chrome   5/16 136.0 36.0
J851632-12-120 Chrome   3/8 160.0 63.0
J851633-12-120 Chrome   7/16 168.0 80.0
J851634-12-120 Chrome   1/2 180.0 108.0
J851635-12-120 Chrome   9/16 193.0 130.0
J851636-12-120 Chrome   5/8 216.0 183.0
J851637-12-120 Chrome   11/16 233.0 214.0
J851638-12-120 Chrome   3/4 250.0 270.0
J851639-12-120 Chrome   13/16 285.0 400.0
J851640-12-120 Chrome   7/8 285.0 395.0
J851641-12-120 Chrome   15/16 325.0 550.0
J851642-12-120 Chrome   1 325.0 545.0
J851643-12-120 Chrome   1-1/16 359.0 -
J851644-12-120 Chrome   1-1/8 425.0 -
J851645-12-120 Chrome   1-1/4 425.0 -
