Part No.

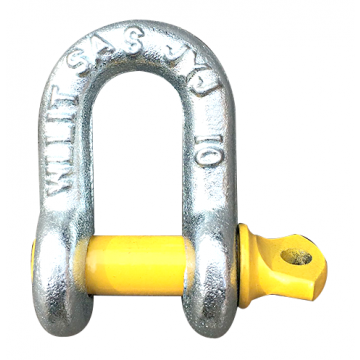

D Shackle

Add to Inquiry List

D Shackle

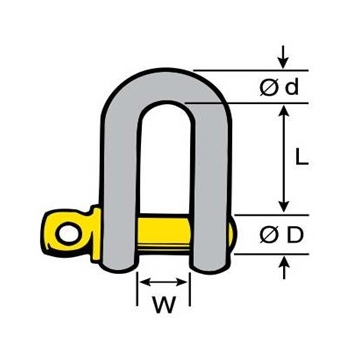

Part No.	W.L.L. Tonne	Grade	Finish Body	Finish Screw	Shape	Closing Method	Dia d mm	Dia Pin D mm	Inside width W mm	Inside LengthL mm	Width iof bow B mm
JYJ-G210-6-1/4	0.50	Grade S	Zinc Plated	Yellow	Dee	Screw	6	8	12	22	-
JYJ-G210-6-5/16	0.75	Grade S	Zinc Plated	Yellow	Dee	Screw	8	10	13	26	-
JYJ-G210-6-3/8	1.00	Grade S	Zinc Plated	Yellow	Dee	Screw	10	11	17	32	-
JYJ-G210--6-7/16	1.50	Grade S	Zinc Plated	Yellow	Dee	Screw	11	13	18	37	-
JYJ-G210-6-1/2	2.00	Grade S	Zinc Plated	Yellow	Dee	Screw	13	16	21	41	-
JYJ-G210-6-5/8	3.20	Grade S	Zinc Plated	Yellow	Dee	Screw	16	19	27	51	-
JYJ-G210-6-3/4	4.70	Grade S	Zinc Plated	Yellow	Dee	Screw	19	22	32	60	-
JYJ-G210-6-1	8.50	Grade S	Zinc Plated	Yellow	Dee	Screw	25	28	43	81	-
