Part No.

Bow Shackle

Add to Inquiry List

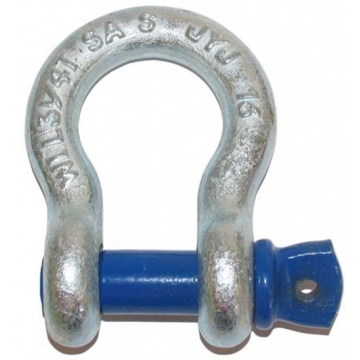

Bow Shackle

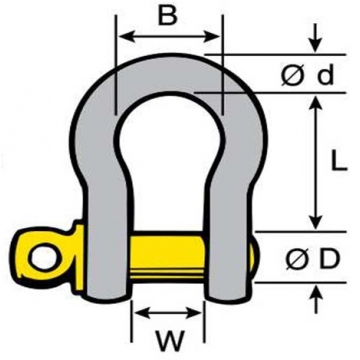

Part No.	Tonne	Type	Body	Screw	Shape	Closing Method	Dia d mm	Dia Pin D mm	Inside width W mm	Inside Length L mm	Width iof bow B mm
JYJ-G209-6-1/4	0.50	Grade S	Zinc Plated	Yellow	Bow	Screw	6	8	12	29	20
JYJ-G209-6-5/16	0.75	Grade S	Zinc Plated	Yellow	Bow	Screw	8	10	13	31	21
JYJ-G209-6-3/8	1.00	Grade S	Zinc Plated	Yellow	Bow	Screw	10	11	17	37	26
JYJ-G209--6-7/16	1.50	Grade S	Zinc Plated	Yellow	Bow	Screw	11	13	18	43	29
JYJ-G209-6-1/2	2.00	Grade S	Zinc Plated	Yellow	Bow	Screw	13	16	21	48	33
JYJ-G209-6-5/8	3.20	Grade S	Zinc Plated	Yellow	Bow	Screw	16	19	27	61	43
JYJ-G209-6-3/4	4.70	Grade S	Zinc Plated	Yellow	Bow	Screw	19	22	32	72	51
JYJ-G209-6-1	8.50	Grade S	Zinc Plated	Yellow	Bow	Screw	25	28	43	95	68
