Part No.

1/4" Square Drive 6 Point Deep Socket

Add to Inquiry List

Specification

• Flank Traction profile

• Exceeds international ASME & DIN Standard

• Long execution

• For manual operation

• Chrome vanadium

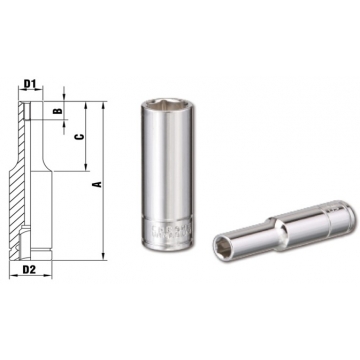

Part No.	Point	Finish	Metric mm	Imperial inch	D1 mm Drive End	D2 mm Socket End	A mm Overall Length	B mm Wrench Depth	C mm Length to Shoulder	Weight ( g )
J844302-26-230	6 Point	Matt	4.0		6.9	12.0	50.0	≧3.0	22.0	19.0
J844303-26-230	6 Point	Matt	4.5		7.5	12.0	50.0	≧3.4	22.0	20.0
J844304-26-230	6 Point	Matt	5.0		8.1	12.0	50.0	≧3.7	22.0	20.0
J844305-26-230	6 Point	Matt	5.5		8.8	12.0	50.0	≧4.5	22.0	21.0
J844306-26-230	6 Point	Matt	6.0		9.4	12.0	50.0	≧5.2	22.0	22.0
J844308-26-230	6 Point	Matt	7.0		10.8	12.0	50.0	≧6.0	22.0	23.0
J844310-26-230	6 Point	Matt	8.0		12.0	12.0	50.0	≧7.5		24.0
J844311-26-230	6 Point	Matt	9.0		13.0	13.0	50.0	≧7.5		29.0
J844312-26-230	6 Point	Matt	10.0		14.6	14.6	50.0	≧9.0		36.0
J844313-26-230	6 Point	Matt	11.0		16.0	16.0	50.0	≧10.5		44.0
J844314-26-230	6 Point	Matt	12.0		17.0	17.0	50.0	≧12		49.0
J844315-26-230	6 Point	Matt	13.0		18.0	18.0	50.0	≧12		54.0
J844316-26-230	6 Point	Matt	14.0		20.0	20.0	50.0	≧15		72.0

J844321-26-230	6 Point	Matt		5/32"	6.9	12.0	50.0	≧3.0	22.0	19.0
J844322-26-230	6 Point	Matt		3/16"	8.1	12.0	50.0	≧3.7	22.0	20.0
J844323-26-230	6 Point	Matt		7/32"	8.8	12.0	50.0	≧4.5	22.0	21.0
J844324-26-230	6 Point	Matt		1/4"	9.9	12.0	50.0	≧5.2	22.0	22.0
J844325-26-230	6 Point	Matt		9/32"	10.8	12.0	50.0	≧6.0	22.0	22.0
J844326-26-230	6 Point	Matt		5/16"	12.0	12.0	50.0	≧7.5		24.0
J844327-26-230	6 Point	Matt		11/32"	13.0	13.0	50.0	≧7.5		30.0
J844328-26-230	6 Point	Matt		3/8"	14.6	14.6	50.0	≧9.0		35.0
J844330-26-230	6 Point	Matt		7/16"	16.0	16.0	50.0	≧10.5		46.0
J844332-26-230	6 Point	Matt		1/2"	18.0	18.0	50.0	≧12.0		55.0
J844333-26-230	6 Point	Matt		9/16"	20.0	20.0	50.0	≧15.0		72.0

J844302-26-220	6 Point	Chrome	4.0		6.9	12.0	50.0	≧3.0	22.0	19.0
J844303-26-220	6 Point	Chrome	4.5		7.5	12.0	50.0	≧3.4	22.0	20.0
J844304-26-220	6 Point	Chrome	5.0		8.1	12.0	50.0	≧3.7	22.0	20.0
J844305-26-220	6 Point	Chrome	5.5		8.8	12.0	50.0	≧4.5	22.0	21.0
J844306-26-220	6 Point	Chrome	6.0		9.4	12.0	50.0	≧5.2	22.0	22.0
J844308-26-220	6 Point	Chrome	7.0		10.8	12.0	50.0	≧6.0	22.0	23.0
J844310-26-220	6 Point	Chrome	8.0		12.0	12.0	50.0	≧7.5		24.0
J844311-26-220	6 Point	Chrome	9.0		13.0	13.0	50.0	≧7.5		29.0
J844312-26-220	6 Point	Chrome	10.0		14.6	14.6	50.0	≧9.0		36.0
J844313-26-220	6 Point	Chrome	11.0		16.0	16.0	50.0	≧10.5		44.0
J844314-26-220	6 Point	Chrome	12.0		17.0	17.0	50.0	≧12		49.0
J844315-26-220	6 Point	Chrome	13.0		18.0	18.0	50.0	≧12		54.0
J844316-26-220	6 Point	Chrome	14.0		20.0	20.0	50.0	≧15		72.0

J844321-26-220	6 Point	Chrome		5/32"	6.9	12.0	50.0	≧3.0	22.0	19.0
J844322-26-220	6 Point	Chrome		3/16"	8.1	12.0	50.0	≧3.7	22.0	20.0
J844323-26-220	6 Point	Chrome		7/32"	8.8	12.0	50.0	≧4.5	22.0	21.0
J844324-26-220	6 Point	Chrome		1/4"	9.9	12.0	50.0	≧5.2	22.0	22.0
J844325-26-220	6 Point	Chrome		9/32"	10.8	12.0	50.0	≧6.0	22.0	22.0
J844326-26-220	6 Point	Chrome		5/16"	12.0	12.0	50.0	≧7.5		24.0
J844327-26-220	6 Point	Chrome		11/32"	13.0	13.0	50.0	≧7.5		30.0
J844328-26-220	6 Point	Chrome		3/8"	14.6	14.6	50.0	≧9.0		35.0
J844330-26-220	6 Point	Chrome		7/16"	16.0	16.0	50.0	≧10.5		46.0
J844332-26-220	6 Point	Chrome		1/2"	18.0	18.0	50.0	≧12.0		55.0
J844333-26-220	6 Point	Chrome		9/16"	20.0	20.0	50.0	≧15.0		72.0
