Part No.

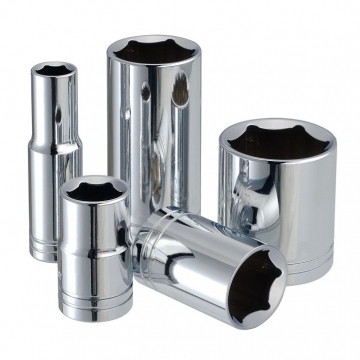

3/8" Square Drive 6 Point Socket

Add to Inquiry List

Specification

• Flank Traction profile

• Exceeds international ASME & DIN Standard

• For manual operation

• Chrome vanadium

Part No.	Point	Finish	Metric mm	Imperial inch	D1 mm Drive End	D2 mm Socket End	A mm Overall Length	B mm Wrench Depth	C mm Length to Shoulder	Weight ( g )
J844040-26-230	6 Point	Matt	6.0		10.1	17.0	28.0	≧3.5	12.0	21.0
J844041-26-230	6 Point	Matt	7.0		11.0	17.0	28.0	≧4.0	12.0	21.0
J844042-26-230	6 Point	Matt	8.0		12.2	17.0	28.0	≧5.0	12.0	22.0
J844043-26-230	6 Point	Matt	9.0		13.5	17.0	28.0	≧5.0	12.0	22.0
J844044-26-230	6 Point	Matt	10.0		14.7	17.0	28.0	≧6.0	12.0	23.0
J844045-26-230	6 Point	Matt	11.0		17.0	17.0	28.0	≧7.0		24.0
J844046-26-230	6 Point	Matt	12.0		17.0	17.0	28.0	≧8.0		24.0
J844047-26-230	6 Point	Matt	13.0		18.0	18.0	28.0	≧8.0		27.0
J844048-26-230	6 Point	Matt	14.0		20.0	20.0	28.0	≧10.0		33.0
J844049-26-230	6 Point	Matt	15.0		22.0	22.0	28.0	≧10.0		41.0
J844050-26-230	6 Point	Matt	16.0		22.0	22.0	28.0	≧10.0		41.0
J844051-26-230	6 Point	Matt	17.0		24.0	24.0	30.0	≧10.0		56.0
J844052-26-230	6 Point	Matt	18.0		26.0	26.0	30.0	≧12.0		65.0
J844053-26-230	6 Point	Matt	19.0		26.0	26.0	30.0	≧12.0		65.0
J844054-26-230	6 Point	Matt	20.0		28.0	28.0	30.0	≧12.0		75.0
J844055-26-230	6 Point	Matt	21.0		28.0	28.0	30.0	≧12.0		75.0
J844056-26-230	6 Point	Matt	22.0		30.0	30.0	30.0	≧14.0		87.0
J844057-26-230	6 Point	Matt	23.0		32.0	32.0	32.0	≧14.0		98.0
J844058-26-230	6 Point	Matt	24.0		32.0	32.0	32.0	≧16.0		98.0

J844065-26-230	6 Point	Matt		1/4"	10.1	17.0	28.0	≧3.5	12.0	20.0
J844067-26-230	6 Point	Matt		5/16"	12.2	17.0	28.0	≧5.0	12.0	21.0
J844068-26-230	6 Point	Matt		11/32"	14.1	17.0	28.0	≧5.0	12.0	22.0
J844069-26-230	6 Point	Matt		3/8"	14.1	17.0	28.0	≧6.0	12.0	22.0
J844070-26-230	6 Point	Matt		7/16"	17.0	17.0	28.0	≧7.0		23.0
J844071-26-230	6 Point	Matt		1/2"	18.0	18.0	28.0	≧8.0		27.0
J844072-26-230	6 Point	Matt		9/16"	20.0	20.0	28.0	≧10.0		33.0
J844073-26-230	6 Point	Matt		5/8"	22.0	22.0	28.0	≧10.0		41.0
J844074-26-230	6 Point	Matt		11/16"	24.0	24.0	30.0	≧10.0		54.0
J844075-26-230	6 Point	Matt		3/4"	26.0	26.0	30.0	≧12.0		65.0
J844076-26-230	6 Point	Matt		13/16"	28.0	28.0	30.0	≧12.0		75.0
J844077-26-230	6 Point	Matt		7/8"	30.0	30.0	30.0	≧14.0		90.0
J844078-26-230	6 Point	Matt		15/16"	32.0	32.0	30.0	≧16.0		116.0
J844079-26-230	6 Point	Matt		1"	34.0	34.0	30.0	≧16.0		122.0

J844040-26-220	6 Point	Chrome	6.0		10.1	17.0	28.0	≧3.5	12.0	21.0
J844041-26-220	6 Point	Chrome	7.0		11.0	17.0	28.0	≧4.0	12.0	21.0
J844042-26-220	6 Point	Chrome	8.0		12.2	17.0	28.0	≧5.0	12.0	22.0
J844043-26-220	6 Point	Chrome	9.0		13.5	17.0	28.0	≧5.0	12.0	22.0
J844044-26-220	6 Point	Chrome	10.0		14.7	17.0	28.0	≧6.0	12.0	23.0
J844045-26-220	6 Point	Chrome	11.0		17.0	17.0	28.0	≧7.0		24.0
J844046-26-220	6 Point	Chrome	12.0		17.0	17.0	28.0	≧8.0		24.0
J844047-26-220	6 Point	Chrome	13.0		18.0	18.0	28.0	≧8.0		27.0
J844048-26-220	6 Point	Chrome	14.0		20.0	20.0	28.0	≧10.0		33.0
J844049-26-220	6 Point	Chrome	15.0		22.0	22.0	28.0	≧10.0		41.0
J844050-26-220	6 Point	Chrome	16.0		22.0	22.0	28.0	≧10.0		41.0
J844051-26-220	6 Point	Chrome	17.0		24.0	24.0	30.0	≧10.0		56.0
J844052-26-220	6 Point	Chrome	18.0		26.0	26.0	30.0	≧12.0		65.0
J844053-26-220	6 Point	Chrome	19.0		26.0	26.0	30.0	≧12.0		65.0
J844054-26-220	6 Point	Chrome	20.0		28.0	28.0	30.0	≧12.0		75.0
J844055-26-220	6 Point	Chrome	21.0		28.0	28.0	30.0	≧12.0		75.0
J844056-26-220	6 Point	Chrome	22.0		30.0	30.0	30.0	≧14.0		87.0
J844057-26-220	6 Point	Chrome	23.0		32.0	32.0	32.0	≧14.0		98.0
J844058-26-220	6 Point	Chrome	24.0		32.0	32.0	32.0	≧16.0		98.0

J844065-26-220	6 Point	Chrome		1/4"	10.1	17.0	28.0	≧3.5	12.0	20.0
J844067-26-220	6 Point	Chrome		5/16"	12.2	17.0	28.0	≧5.0	12.0	21.0
J844068-26-220	6 Point	Chrome		11/32"	14.1	17.0	28.0	≧5.0	12.0	22.0
J844069-26-220	6 Point	Chrome		3/8"	14.1	17.0	28.0	≧6.0	12.0	22.0
J844070-26-220	6 Point	Chrome		7/16"	17.0	17.0	28.0	≧7.0		23.0
J844071-26-220	6 Point	Chrome		1/2"	18.0	18.0	28.0	≧8.0		27.0
J844072-26-220	6 Point	Chrome		9/16"	20.0	20.0	28.0	≧10.0		33.0
J844073-26-220	6 Point	Chrome		5/8"	22.0	22.0	28.0	≧10.0		41.0
J844074-26-220	6 Point	Chrome		11/16"	24.0	24.0	30.0	≧10.0		54.0
J844075-26-220	6 Point	Chrome		3/4"	26.0	26.0	30.0	≧12.0		65.0
J844076-26-220	6 Point	Chrome		13/16"	28.0	28.0	30.0	≧12.0		75.0
J844077-26-220	6 Point	Chrome		7/8"	30.0	30.0	30.0	≧14.0		90.0
J844078-26-220	6 Point	Chrome		15/16"	32.0	32.0	30.0	≧16.0		116.0
J844079-26-220	6 Point	Chrome		1"	34.0	34.0	30.0	≧16.0		122.0
